Standard Profiles

Download Our Standard Profiles (PDF)

ACS Standing Seam Panel Profile

Standing Seam Panels	Snap On Seam Cover
Adjustable leg – 1/2″ to 1 1/2″ Adjustable width – 12″ to 24″ Job site roll forming available Roof top roll forming available Stiffening ribs optional Curved in 5/8″ leg available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper	Job site roll forming available Roof top roll forming available Curved available 26GA, 24GA steel, .032 aluminum Uses 2.625″ coil

ACS Double Lock Panels

Double Lock Panels (machine seamed)
Adjustable width – 12″ to 24″ Job site roll forming available Roof top roll forming available Stiffening ribs optional 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper Power seamer rental available Hand seaming tool rental available Lock dimension for 1″ = 3″, 1.5″ = 4″

ACS Profile Snap Lock

Snap Lock Panels
Adjustable width – 9″ to 20″ Job site roll forming available Roof top roll forming available Reveal type available – 1″ max Stiffening beads optional 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper Lock dimension = 4″

ACS Nail Strip

Nail Strip Panels
12″, 16″ and 20″ standard panel widths w/machine cut Other widths available w/o machine cuts (pre-cut blanks) Job site roll forming Roof top roll forming Stiffening ribs available Striations available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper Uses 4″ for lock

ACS Radius Roofing W/No Radius Change

Radius Roofing
Contact ACS for more details Field measuring service available Job site roll forming available Roof top roll forming available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper

ACS Curved Roofing W/No Radius Change

Curved Roofing
Contact ACS for more details Field measuring service available Job site roll forming available Roof top roll forming available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper

ACS Concave Curved Roofing

Concave Curved Roofing
Contact ACS for more details Field measuring service available Job site roll forming available Roof top roll forming available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper

ACS Complex Curved Panel Profile

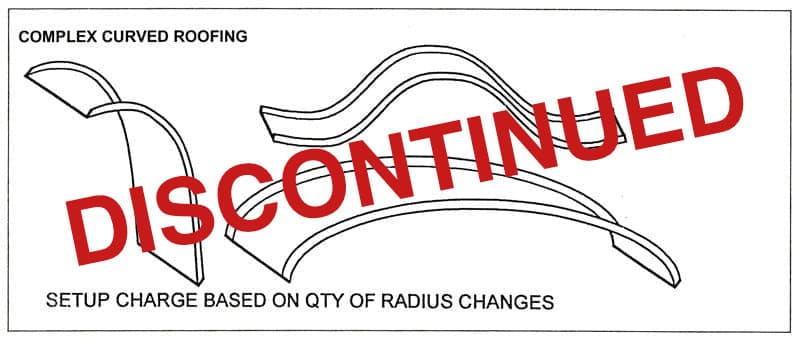

Complex Curved Roofing – DISCONTINUED
Contact ACS for more details Field measuring service available Job site roll forming available Roof top roll forming available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper

ACS Tapered/Trapezoid Panels

Tapered/Trapezoid Panels
Contact ACS for more details Field measuring service available Shop fabricated 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper

ACS Compound Curved Panel Profiles

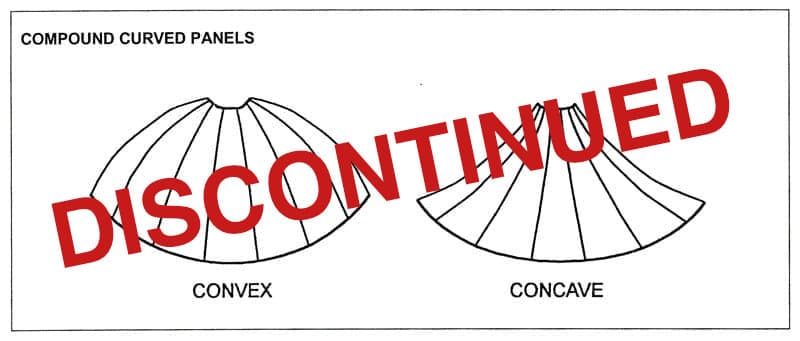

Compound Curved Panels – DISCONTINUED
Contact ACS for more details Field measuring service available Shop fabricated Framing available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper

ACS Batten Seam Panel Profile

Batten Seam Panels	Snap On Batten Cover
Adjustable leg – 1/2″ to 1 1/2″ Adjustable width – 12″ to 24″ Job site roll forming available Roof top roll forming available Stiffening ribs optional Curved in 5/8″ leg available 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper	Clips available for 5/8″, 7/8″ and 1 3/8″ legs Job site roll forming available Roof top roll forming available 26GA, 24GA steel, .032 aluminum, 16oz and 20oz. copper 2 1/4″ width by 1 5/8″ height 2″ width by 1 5/8″ height 1 1/2″ width by 1 5/8″ height

ACS Bermuda Panel

Bermuda Panel
Adjustable width – 8.5″ to 16″ Job site roll forming available Roof top roll forming available Stiffening ribs optional 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper Uses 2 1/2″ for lock

ACS Flush Seam
ACS Optional Stiffening Beads
ACS Reveal Seam

Flush Seam Panel
Adjustable width – 9″ to 20″ Job site roll forming available Roof top roll forming available Reveal type available – 1″ max Stiffening beads optional 26GA, 24GA steel, .032 aluminum, 16oz. and 20oz. copper Uses 4″ for lock
